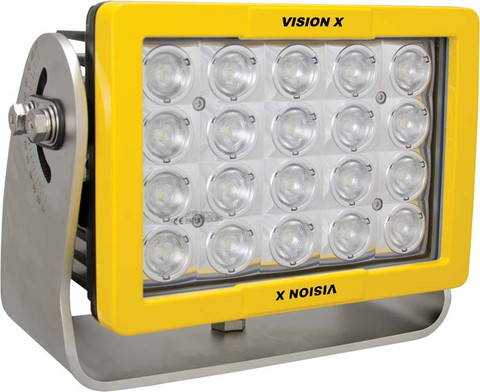

Blacktips Heavy Duty 20 LED 140W 40° - Vision X BHB072040

Blacktips Heavy Duty 20 LED 140W 40° - Vision X BHB072040

The BT Series were engineered to work harder and longer than any other LED work light in their class. The BT Heavy Industrial Series offers outstanding light output in a functional design utilizing a forward rake trunnion bracket, with integrated aiming markings on the sides and base of the bracket. Utilizing the aiming system in conjunction with 3d fit outs to ensure the correct light for any environment. Capable of standing up to 60G rms of intense vibrations in the harshest conditions, these lights are the perfect solution for replacing unreliable lights on your work site. There’s something comforting about being able to install a light and never have to worry about it.

Rugged and Durable Construction
The combination of a die-cast 6061 aluminum housing, marine grade anti-corrosive coating, unbreakable polycarbonate lens, integrated deutsch connector, reinforced gasketed bezel and a strengthened trunnion bracket create a one of a kind, high-powered light that will outshine and outlast the competition.

Prime Drive Technology
Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your lights. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.

Data:
LEDs: 20 x 7W Cree
Light Colour Temp: 5700K
Effective Lumens: 11270
Raw Lumens: 16000
Voltage: 11-65V
Current Draw: 11.7A @12V
Wattage: 140W
Connector: Deutsch DT04-2P
Bracket Type: Forward rake trunnion bracket with aiming system
Weight: 4.2kg
Width: 239mm
Height: 173mm
Depth: 125mm
IP Rating: IP69K
Vibration Dampened & Shock Proof: 60 Grms
EMC Approval: CISPR25 Klass 1/CE approved
Lens Material: Polycarbonate
Housing Material: Die-cast 6061 aluminum
Housing Coating: Marine Grade Anti-Corrosive
Light Patterns: 40° Euro (Also available in 10°, 25°, 60°).

Vision X BHB072040
